The two-minute midline
M/29 Bullpup™
A long peripheral catheter (mini-midline) with a safety needle. Inserted over the needle like a standard cannula in about two minutes, indicated for up to 29 days.
Models
Two designs, seven references

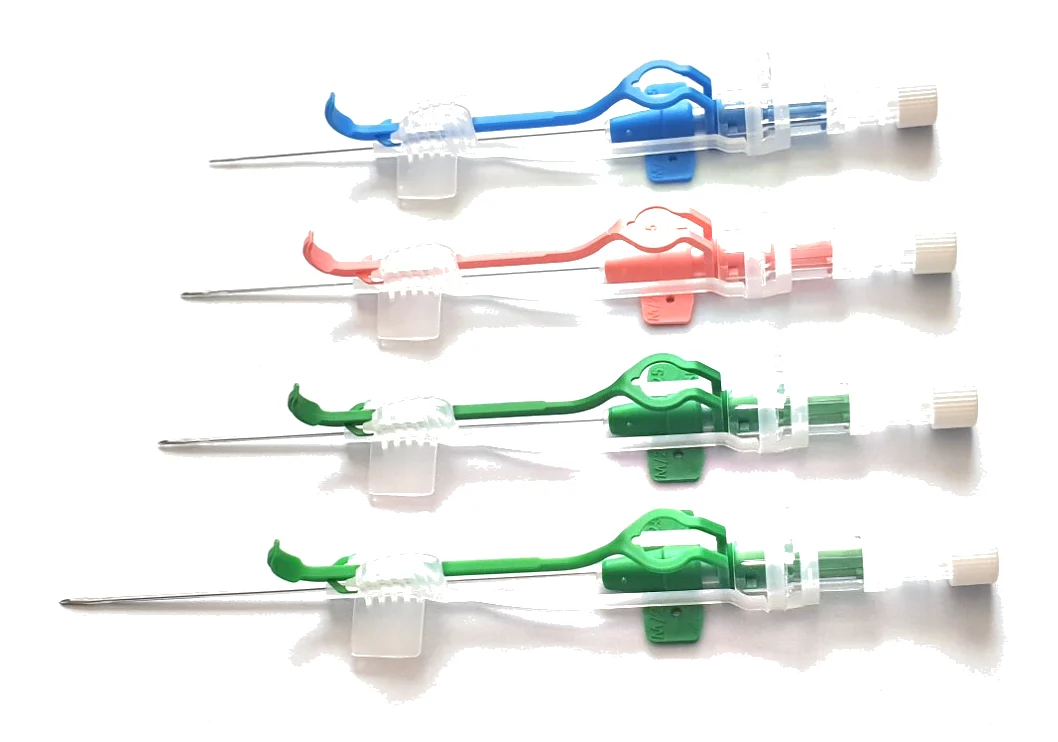

The non-ported version is the standard choice: soft wings for secure fixation, designed for use with a needle-free extension set, which we recommend for every line. The ported version adds an injection port for specialised cases. Colours follow ISO 10555.
| Reference | Gauge | Colour | Type | Effective length | Flow rate |
|---|---|---|---|---|---|
| 09186920FD | 18G | Green | Ported | 78.5 mm | 70 ml/min |
| 09205820FD | 20G | Pink | Ported | 78.5 mm | 40 ml/min |
| 09224520FD | 22G | Blue | Ported | 78.5 mm | 18 ml/min |
| 46187420FY | 18G Long | Green | Non-ported, winged | 98 mm | 60 ml/min |
| 10187020FY | 18G | Green | Non-ported, winged | 85 mm | 70 ml/min |
| 10205920FY | 20G | Pink | Non-ported, winged | 85 mm | 40 ml/min |
| 10224620FY | 22G | Blue | Non-ported, winged | 85 mm | 18 ml/min |
Accessories: needle-free extension set (15 cm). Private-label and bulk packing available on request.
Indications
Who should get an M/29
- Patients expected to need IV therapy for more than 3–4 days
- Difficult venous access (DIVA), elderly and frequently admitted patients
- IV antibiotic courses in internal medicine, orthopaedics and infectious diseases
- ICU step-down after central line removal
- Outpatient and home IV therapy (OPAT)
- CT contrast by power injection (up to 325 PSI)
Infusates must be suitable for peripheral administration. Highly vesicant or irritant drugs suitable only for central lines are not indicated. See the IFU for full indications and contraindications.
Where it fits
| Short cannula | M/29 Bullpup | Guidewire midline | |
|---|---|---|---|
| Technique | Over the needle | Over the needle | Seldinger / wire |
| Who inserts | Any IV nurse | Any IV nurse | Trained VA team |
| Typical dwell | 1–4 days | Up to 29 days | Up to 29 days |
| Catheter length | 2.5–5 cm | 7.9–9.8 cm | 8–20 cm |
| Waiting time | None | None, bedside | Often days |
| Insertion time | Minutes | 130 s on average (Rambam) | Longer: wire, dilator and sheath steps |
Insertion
Watch a full insertion
Same preparation, same puncture, same flashback as a standard cannula. The difference is a handle that advances the long catheter without touching it, and a needle that locks away when withdrawn.
- Upper-arm placement recommended for the longest dwell; the tip should not sit across the elbow
- Ultrasound guidance optional, and recommended for deeper veins
- Single needle-free extension line recommended
Ready to bring M/29 to your hospitals?
Request samples, the clinical deck and pricing for your territory.
